Welding stands as a critical process in various industries, demanding both precision and skill. Among the diverse array of electrodes available, the E7018 has gained prominence due to its specific properties and applications. This article delves into the techniques and considerations pivotal in welding with E7018 electrodes.
Understanding E7018 Electrodes
Before diving into the manipulation techniques, it's essential to understand the characteristics of the E7018 electrode. This electrode, known for its low-hydrogen and high-efficiency qualities, delivers robust and clean welds, making it suitable for critical applications. Its composition ensures minimal hydrogen absorption, reducing the risk of hydrogen-induced cracking.
Key Features
- Composition: Contains iron powder, which enhances deposition rates.
- Coating: Rutile and low-hydrogen potassium-based.
- Weld Quality: Provides X-ray quality welds with minimal slag.
- Versatility: Ideal for both AC and DC welding machines.
Electrode Manipulation Techniques
When welding with E7018 electrodes, the manipulation technique plays a crucial role in determining the quality and strength of the weld.
Technique Overview
- Whipping Technique: Involves quickly moving the electrode forward and then back along the welding line. This method helps in achieving deeper penetration and is particularly effective on thicker materials.
- Circles and Weaves: Creating small circles or weaving patterns helps in distributing the weld material evenly, ensuring a uniform bead with minimal defects.
- Stringer Bead Technique: Involves a straight movement without any side-to-side motion, suitable for thinner materials where heat control is critical.
Considerations for Optimal Welding
Achieving a high-quality weld with E7018 electrodes requires attention to several parameters:
- Amperage Settings: Typically ranges from 110 to 160 amps, depending on the electrode size and material thickness.
- Electrode Angle: Maintain a 15 to 20-degree angle relative to the workpiece for efficient welding.
- Arc Length: Keep the arc as short as possible without allowing the electrode to touch the workpiece.
- Travel Speed: A steady, moderate speed ensures consistent bead appearance and penetration.
Applications and Advantages
E7018 electrodes are widely used in various sectors, including construction, shipbuilding, and pipeline industries.
- Structural Welding: Ideal for high-strength requirements in buildings and bridges.
- Repair Work: Excellent for repairing critical components due to its high tensile strength and crack resistance.
Advantages
- Crack Resistance: Minimizes the risk of hydrogen-induced cracking.
- All Position Versatility: Suitable for all position welding, including overhead and vertical.
- User-Friendly: Forgiving nature makes it a preferred choice for both novice and experienced welders.
Conclusion

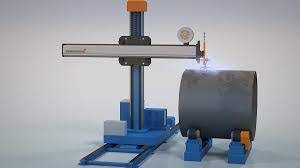

The E7018 electrode stands out in the welding world for its versatility, strength, and ease of use. Mastering the manipulation techniques and understanding the electrode's properties can significantly enhance welding quality and efficiency. For more advanced welding applications, consider integrating a
welding manipulator, which can further improve precision and productivity.
